AF-LMF

Standing Pilot Valve System (Base Model)


Features
  • 30-Millivolt manual safety pilot kit measuring 3-3/4 inch W x 4 inch D x 2-3/4 inch H
  • 225°F rated valve
  • Designed specifically for use with vented gas logs
  • Exclusive safety seal within the gas valve
  • Quick mount pilot assembly
  • Damper clamp included
  • Propane conversion kits available
  • Easy upgrade to remote operation
Box Includes: Valve Kit, Flex Line, Damper Clamp, 3/8” to 1/2” Flare Adapter, Instructions
AF-LMF Instructions Images

Upgrade Kits

The AF-LMF series is a standing Pilot valve kit

This AF-LMF is the base model, but you are able to upgrade the AF-LMF to suit your personal needs with our convenient UPGRADE KITS. You can either purchase the different packages that we offer in this catalog, or you can buy them individually. It’s completely up to you how you want to customize your valve kit.

For use with indoor vented gas fireplace burners

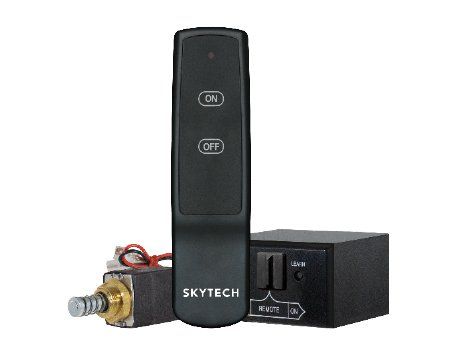

RCAF-LMF

ON/OFF remote control for AF-LMF series gas valve kits
Includes solenoid, batteries, wire kit & receiver shield
Box Includes: Transmitter, Receiver, Wall Clip, Solenoid, Hardware bag, Batteries, Instructions
RCAF-LMF Instructions

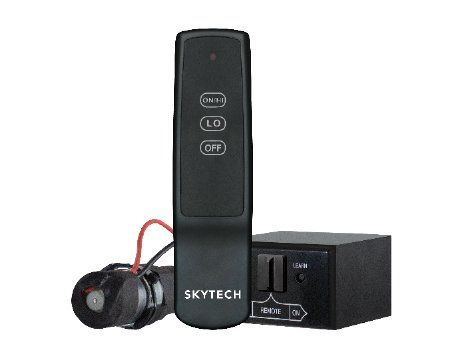

RCAF-LMF-V

Variable flame adjustment remote control for AF-LMF series gas valve kits
Includes variable flame motor drive, batteries, wire kit & receiver shield
Box Includes: Transmitter, Receiver, Wall Clip, Motor Drive, Extension Knob, Hardware bag, Batteries, Instructions
RCAF-LMF-V Instructions

Fully Upgraded Systems

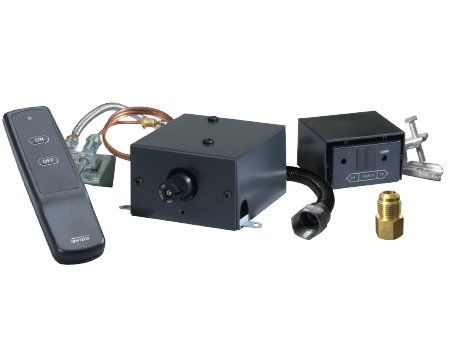

AF-LMF-R

Millivolt manual safety pilot kit measuring 3-3/4 inch W x 4 inch D x 2-3/4 inch H
225°F rated valve
Designed specifically for use with vented gas logs
ON/OFF remote control included (CON)
Exclusive safety seal within the gas valve
Quick mount pilot assembly
Damper clamp included
Propane conversion kits available
The AF-LMF-R is a combination of the following models: AF-LMF + RCAF-LMF
AF-LMF-R Instructions Images

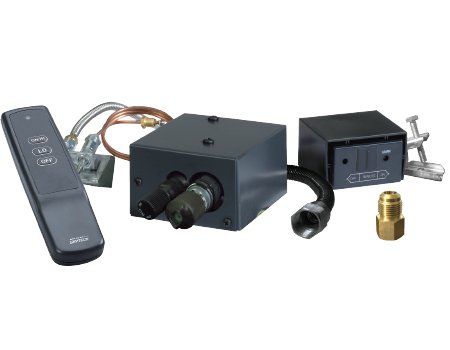

AF-LMF-RV

Millivolt manual safety pilot kit measuring 3-3/4 inch W x 4 inch D x 2-3/4 inch H
225°F rated valve
Designed specifically for use with vented gas logs
Variable flame remote control included (RCAF-1020-1)
Exclusive safety seal within the gas valve
Quick mount pilot assembly
Damper clamp included
Propane conversion kits available
Recommended for vented gas log sets under 70,000 BTUs
The AF-LMF-RV is a combination of the following models: AF-LMF + RCAF-LMF-V
AF-LMF-RV Instructions Images

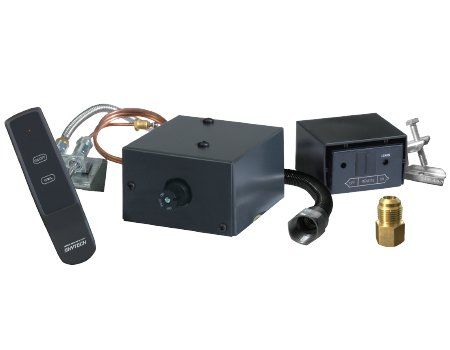

AF-LMF-RVS

Millivolt manual safety pilot kit measuring 3-3/4 inch W x 4 inch D x 2-3/4 inch H
225°F rated valve
Designed specifically for use with vented gas logs
Variable flame remote control included (RCAF-1020-1)
Exclusive safety seal within the gas valve
Quick mount pilot assembly
Damper clamp included
Propane conversion kits available
Not recommended for vented gas log sets under 70,000 BTUs
The AF-LMF-RVS is not made up of individual models. It must be purchased as a whole.
AF-LMF-RVS Instructions Images

AF-LMF ACCESSORIES


RCAF-LMF-WWS

ON/OFF wireless wall switch for AF-LMF series gas valve kits
Included solenoid, batteries, wire kit & receiver shield

TM-R-AF1TX

Wireless timer for use with AFVK-SP series gas valve kits
Includes 30/60/120/OFF wireless timer & batteries

2385-9P

Universal pilot assembly for most vented gas log sets
Mounting bracket standard
Includes 30 millivolt thermocouple
Includes aluminum pilot supply line
Optional high limit energy cutoff
Fully assembled ready to install

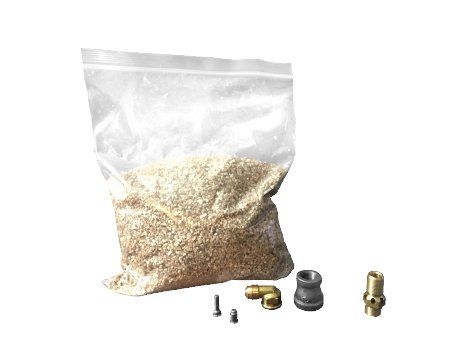

LPK-18 / LPK-24

Used to convert AF-LMF series valve kit from Natural Gas (NG) to Liquid Propane (LP).
Two different models: 18 inch burner or 24 inch burner
